Description

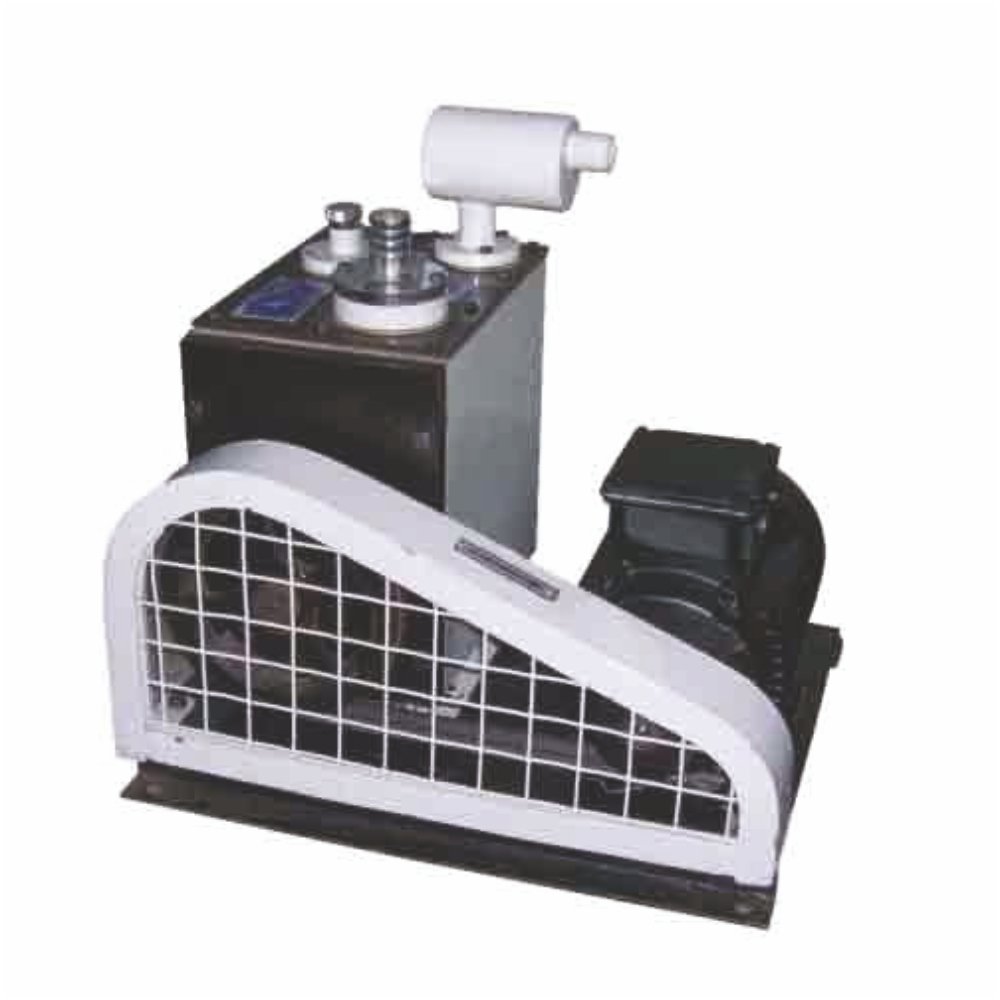

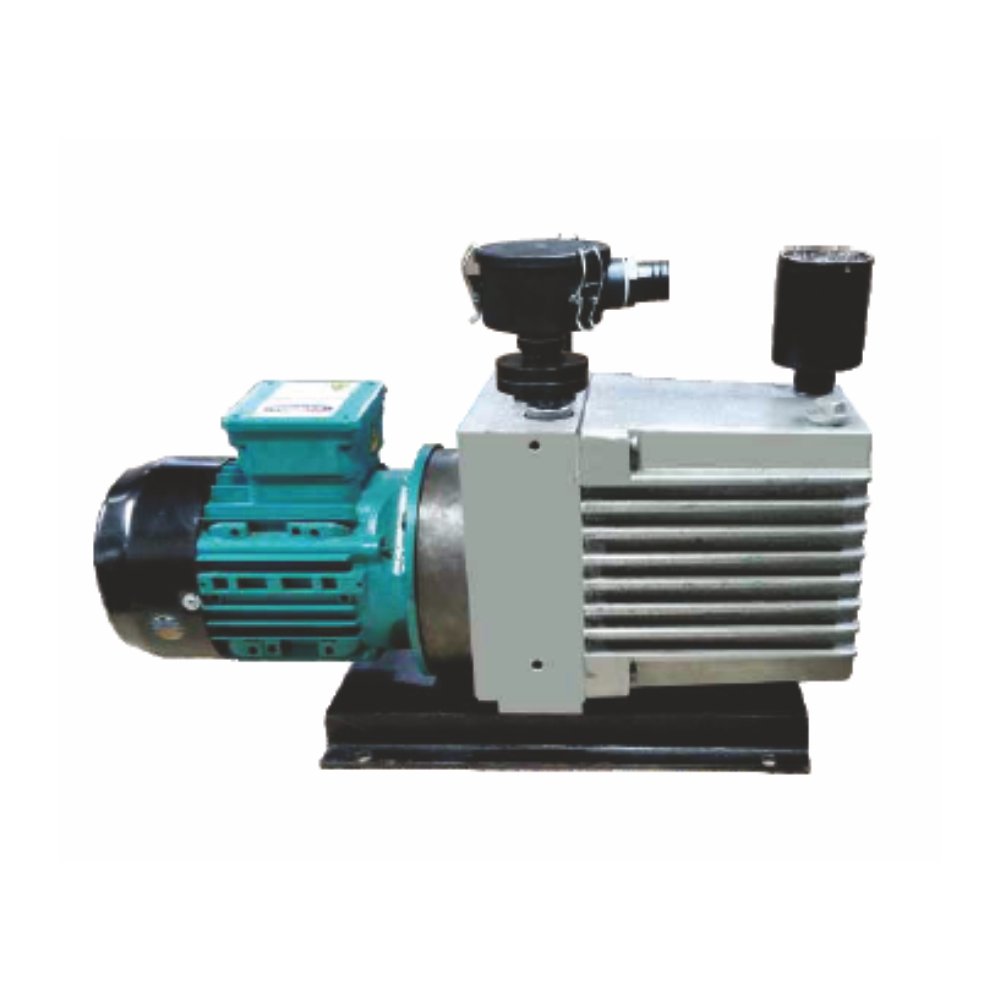

Chemical Series Vacuum Pump Applications Filament Bulb Multi Vanes Rotary Vane Vacuum Pump T.V. Aluminizer Vacuum Flask Electron Microscopes Sputtering Leak Detection Thin film coating Freeze Drying Chemistry Laboratories Mass Spectrometry Epoxy Degassing Distillation Gas Charging in Air Conditioner & Refrigerator For Distillation & drying Application Model A1 12 CS A1 40 CS A1 60 CS A1 90 CS A1 300 CS A1 500 CS Type Direct Drive Belt Drive Belt Drive Belt Drive Belt Drive Belt Drive Cooling Air Cooled Air Cooled Air Cooled Water Cooled Water Cooled Water Cooled Pumping Speed (M3/hr) 12 M3/Hr 40 M3/Hr 60 M3/Hr 90 M3/Hr 300 M3/Hr 500 M3/Hr Pumping Speed (LPM) 200 LPM 650 LPM 1000 LPM 1500 LPM 5000 LPM 8500 LPM Ultimate Vacuum (Closed Gas Ballast) 1 mbar 1 mbar 1 mbar 1 mbar 1 mbar 1 mbar Ultimate Vacuum (Open Gas Ballast) 2 mbar 1 mbar 1 mbar 1 mbar 1 mbar 1 mbar Water Vapour Tolerance 40 mbar 40 mbar 40 mbar 40 mbar 40 mbar 40 mbar Water Vapour Capacity (Open Ballast) 2 Kg/Hr 6 Kg/Hr 1 Kg/Hr 3.5 Kg/Hr 5 Kg/Hr 8 Kg/Hr Pump Speed (RPM) 1440 960 960 960 960 960 Oil Capacity 1 Liter 5 Liter 6 Liter 10 Liter 24 Liter 26 Liter Motor H.P. .5 H.P. 1.5 H.P. 2 H.P. 3 H.P. 10 H.P. 15 H.P. DIRECT DRIVE VACUUM PUMP AIR COOLED DOUBLE STAGE VACUUM PUMP UP TO 1500 LPM Model Pumping Speed (LPM) Oil Capacity (Liter) Motor H.P. Inlet Connection Weight With Motor Nozzle A1 200 DD 200 1 0.5 3/4” BSP OD 32mm 30 A1 350 DD 350 2.5 1 3/4” BSP OD 32mm 52 A1 600 DD 600 2.5 1.5 “BSP 3/4 OD 32mm 56 A1 1000 DD 1000 3.5 2 1”BSP OD 40mm 75 Ultimate Vacuum : 0.001 mm Hg in Double Stage Pump(McLeod Gauge)
