Description

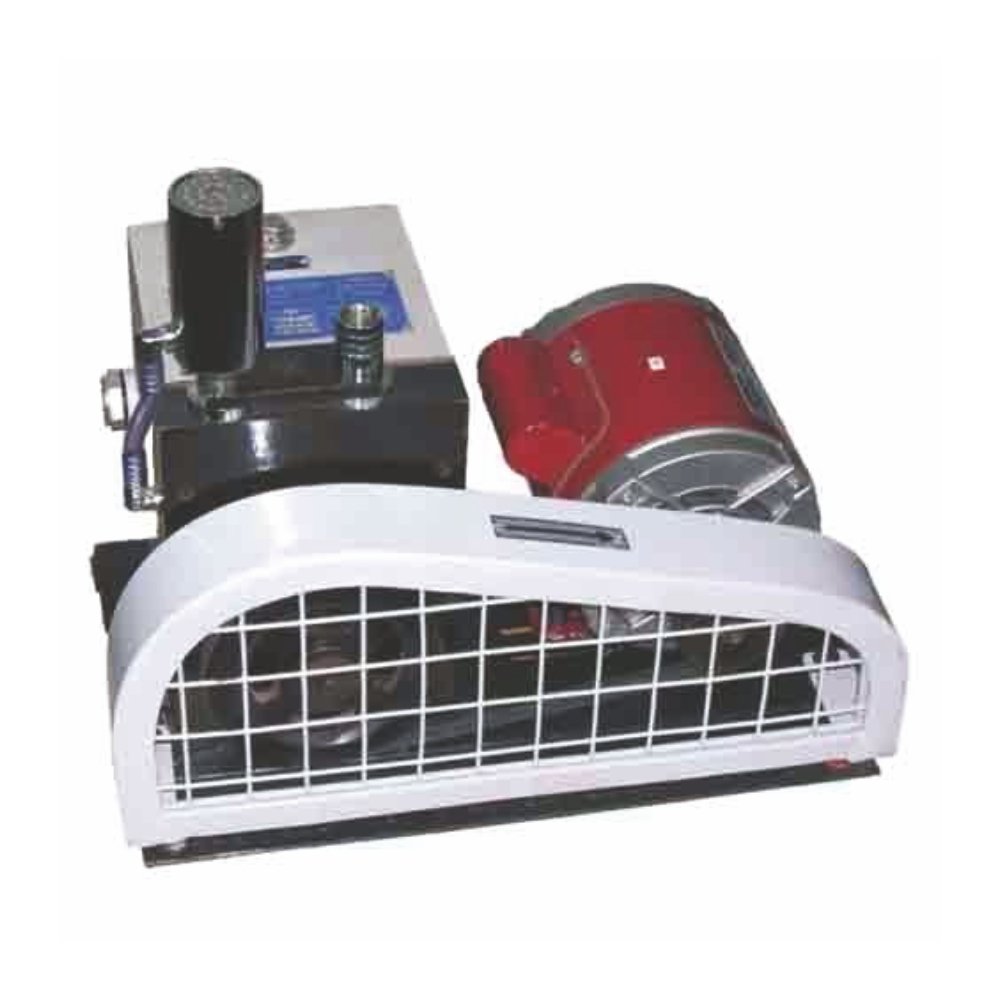

Oil Sealed Rotary Vane Vacuum Pump Applications Thin Flim Coating Transformer Oil Filtration Vacuum Flask Refrigeration Distillation Capacitor Filament Bulb Packaging Thermoforming Jewllery Casting Lube Oil Re’nery Cryogenic Vessel Freeze Drying Cable Drying Vacuum Impregnation Transformer Drying Break Line Evacuation Annealing AIR COOLED VACUUM PUMP SINGLE & DOUBLE 200 LPM TO 1000 LPM Model Pumping Speed No. of Stage Vacuum at Pump Inlet (By McLeod Gauge) Motor H.P. Oil Capacity Inlet Port A1 200 S 200 LPM Single .05 mm or Hg .5 H.P. 3 Liters 1/2” BSP A1 21 S 350 LPM Single .05 mm or Hg 1 H.P. 3.5 Liters 1/2” BSP A1 30 S 500 LPM Single .05 mm or Hg 1 H.P. 3.5 Liters 3/4” BSP A1 600 S 600 LPM Single .05 mm or Hg 1.5 H.P. 5 Liters 3/4” BSP A1 50 S 800 LPM Single .05 mm or Hg 2 H.P. 5 Liters 1” BSP A1 1000 S 1000 LPM Single .05 mm or Hg 2 H.P. 8.5 Liters 1” BSP A1 200 D 200 LPM Double .001 mm or Hg 1 H.P. 3.5 Liters 1/2” BSP A1 325 D 325 LPM Double .001 mm or Hg 1 H.P. 3.5 Liters 1/2” BSP A1 21 D 350 LPM Double .001 mm or Hg 1 H.P. 3.5 Liters 1/2” BSP A1 30 D 500 LPM Double .001 mm or Hg 1 H.P. 3.5 Liters 3/4” BSP A1 600 D 600 LPM Double .001 mm or Hg 1.5 H.P. 5 Liters 3/4” BSP A150 D 800 LPM Double .001 mm or Hg 2 H.P. 6 Liters 1” BSP A1 1000 D 1000 LPM Double .001 mm or Hg 2 H.P. 6.5 Liters 1” BSP WATER COOLED VACUUM PUMP 1500 LPM TO 7500 LPM Model Pumping Speed (LPM) No. of Stage Oil Capacity (Litre) Pump (RPM) Motor H.P. Inlet Connection Flange Size Rating A1 1500D 1500 2 8 525 3 1.5″ ANSI 150 A1 2510D 2500 2 16 525 5 2″ ANSI 150 A1 3510D 3500 2 20 525 7.5 2″ ANSI 150 A1 5010D 5000 2 26 525 10 4″ ANSI 150 A1 7510D 7500 2 31 525 12.5 4″ ANSI 150 Ultimate Vacuum : 0.001 mm of hg in Double Stage Pump (By McLeod Gauge) Single Stage Pumps are also available Ultimate Vacuum in Single Stage pump : .05 mm of Hg (By McLeod Gauge)
